Charging pile grid-connected box
Product Features
- Product Description
- Performance characteristics
- Technical parameters
-
- Commodity name: Charging pile grid-connected box
- 产品特点: Efficient Power Distribution: Supports multiple outputs, providing power to multiple charging piles. Multiple Protections: Features overvoltage, undervoltage, overcurrent, short-circuit, and leakage protection to ensure charging safety. Intelligent Monitoring: Built-in monitoring system supports real-time data acquisition, remote monitoring, and fault alarm. Modular Design: Internal components are modularized for easy installation, maintenance, and expansion. High Protection Level: Protection level reaches IP54 or IP65, suitable for outdoor environments. Electricity Metering: Accurately measures charging electricity, supporting time-of-use billing.
The charging pile grid-connected box is a key piece of equipment in electric vehicle charging facilities, used to safely and efficiently distribute grid power to charging piles while also providing protection, monitoring, and metering functions. It is suitable for public charging stations, commercial parking lots, residential areas, and other scenarios.

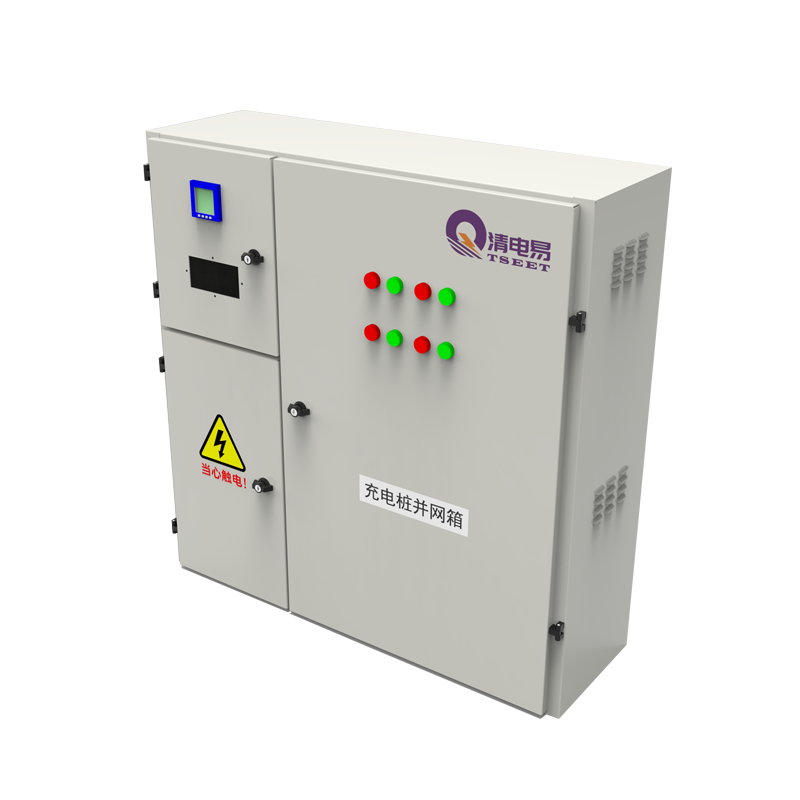

Product Appearance and Internal Structure
Appearance: Uses high-strength sheet metal material with a corrosion-resistant coating, suitable for outdoor or indoor installation.
Internal Structure:
Circuit Breaker: Used for overcurrent and short-circuit protection.
Electric Energy Metering Module: Accurately records the amount of electricity charged.
Communication Module: Supports remote monitoring and data transmission.
Monitoring Display Screen: Real-time display of voltage, current, power, and other parameters.
Lightning Protection Device: Protects the equipment from lightning damage.
Application Scenarios
Public Charging Stations: Provide fast charging services for electric vehicles.
Commercial Parking Lots: Provide charging facilities in shopping malls, office buildings, etc.
Residential Communities: Provide convenient charging services for community residents.
Highway Service Areas: Provide charging support for long-distance electric vehicles. -
Direct current (DC) electricity generated by solar panels is converted to alternating current (AC) electricity by an inverter, meeting the voltage and frequency requirements of the power grid. This is the power interface equipment for a solar photovoltaic power station. The equipment has functions such as power distribution, electricity metering, and protection control, enabling the integration of electricity generated by the solar photovoltaic power generation system into the grid and providing a safe and stable power output. A photovoltaic grid-connected box typically includes components such as a photovoltaic inverter, power protection switch, current transformer, electricity meter, temperature sensor, and communication module.
-
Electrical Parameters
Rated Voltage
380V/220V
Rated Frequency
50HZ
Rated Current
200A
Maximum DC Input Voltage
1000V
Maximum AC Output Power
100KW
Conversion Efficiency
98%
Harmonic Content
≤3%
Communication Interface
RS485
Cooling Method
Natural Cooling
System Parameters
Ingress Protection Rating
IP54
Permissible Ambient Temperature
-25 ~ +55℃
Permissible Relative Humidity
10~90%, non-condensing
Permissible Maximum Altitude
≤2000m
Mechanical Parameters
Product Dimensions (Length*Depth*Height)
1000mm*1000mm*350mm
Product Weight
150kg
