KYN28-12 high-voltage switchgear
Product Features
- Product Description
- Performance characteristics
- Technical parameters
-
- Commodity name: KYN28-12 high-voltage switchgear
- 产品特点: Metal Clad Design: The cabinet adopts a metal clad structure, which has high mechanical strength and protection level, and can effectively prevent the spread of internal faults. Modular Design: Each functional unit in the cabinet is modularized, which is convenient for installation, maintenance and expansion. High Reliability: Advanced vacuum circuit breakers are used, which have high breaking capacity and long electrical life. High Safety: It has complete "five-prevention" functions (preventing mis-separation and mis-closing of circuit breakers, preventing on-load separation and closing of isolating switches, preventing live grounding, preventing closing with grounding wire, and preventing entry into live compartments), ensuring operational safety. Intelligence: An intelligent monitoring system can be equipped to realize remote monitoring, fault diagnosis and data acquisition.
The KYN28-12 high-voltage switchgear is a metal-clad, withdrawable switchgear primarily used in 3.6-12kV three-phase AC 50Hz power systems. It serves as distribution equipment in power plants, substations, and industrial and mining enterprises, accepting and distributing electrical energy, and controlling, protecting, and monitoring circuits.
The KYN28-12 high-voltage switchgear is a metal-clad, withdrawable switchgear primarily used in 3.6-12kV three-phase AC 50Hz power systems. It serves as distribution equipment in power plants, substations, and industrial and mining enterprises, accepting and distributing power, and controlling, protecting, and monitoring circuits.
Structural Composition
Enclosure: Made of welded steel plate, divided into busbar compartments, circuit breaker compartments, cable compartments, and relay instrument compartments.
Circuit Breaker: Usually a vacuum circuit breaker, mounted on a withdrawable truck for easy maintenance and replacement.
Operating Mechanism: Spring-energy operating mechanism with manual and electric operation functions.
Protection Device: Equipped with a microprocessor protection device, providing overcurrent, short-circuit, and ground fault protection.
Instruments and Indicator Lights: Used to display voltage, current, power, and other parameters, as well as equipment operating status
Product Showcase

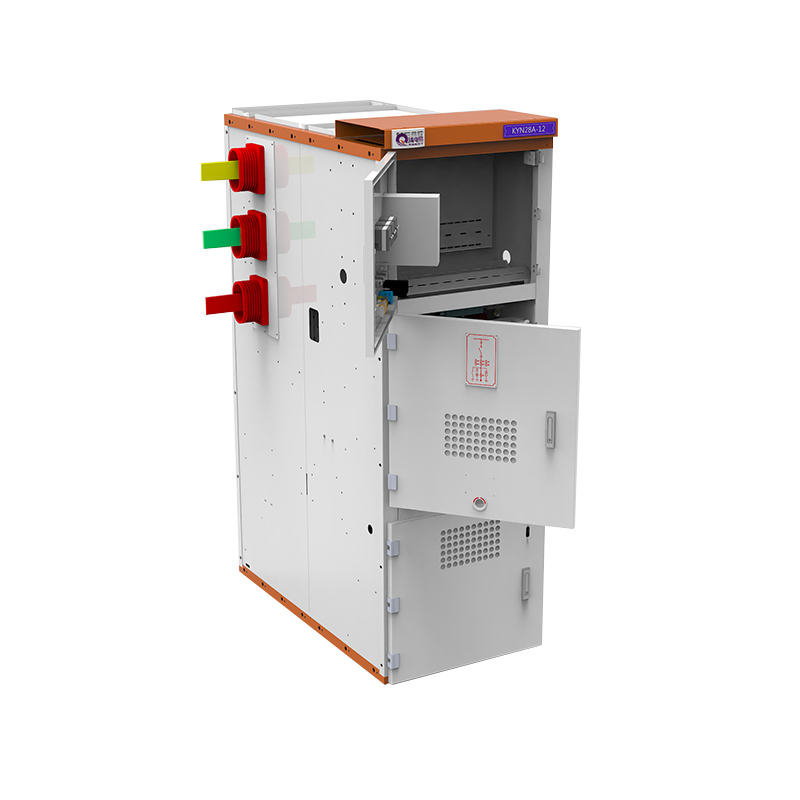

Exterior Appearance: The KYN28-12 high-voltage switchgear has a clean appearance. The enclosure is typically RAL7035 (light gray), with clear markings and operating instructions on the door.
Internal Structure: Opening the door reveals the circuit breaker truck, busbar compartment, cable compartment, etc., with a rational layout for easy maintenance.
Operating Interface: The front of the enclosure is equipped with operating handles, instruments, indicator lights, and a microprocessor protection device for simple and intuitive operation.
Intelligent Monitoring System: Some high-end KYN28-12 high-voltage switchgears are equipped with an intelligent monitoring system, allowing real-time viewing of equipment operating status and fault alarms via a touchscreen or remote monitoring platform.
Control platform for real-time viewing of equipment operating status and fault alarms.
Application Scenarios
Power Plants: Used for generator outputs and plant power systems.
Substations: Used in 10kV distribution systems as incoming, outgoing, and busbar switchgear.
Industrial and Mining Enterprises: Used in the distribution systems of large industrial and mining enterprises to ensure the reliability and safety of power supply.
Urban Power Distribution: Used in urban power grids for ring-main and radial power supply. -
Electrical Parameters Rated Current 630A, 1250A, 1600A, 2000A, 2500A, 2500A Rated Voltage 10kV Branch Busbar 630A, 1250A, 1600A, 2000A Rated Short-Circuit Breaking Current 20kA, 25kA, 31.5kA, 40kA Rated Short-Time Withstand Current (4s) 20kA, 25kA, 31.5kA, 40kA Rated Peak Withstand Current 50kA, 63kA, 100kA Rated Power Frequency Withstand Voltage Ground and phase-to-phase: 42kV (1min), Isolation break: 48kV (1 min) Rated Lightning Impulse Withstand Voltage Ground and phase-to-phase: 75kV, Isolation break: 85kV System Parameters Enclosure Protection Level IP2X Permissible Ambient Temperature -10 ~ +40℃ Permissible Relative Humidity ≤95% Permissible Maximum Altitude ≤1000 meters (Special design required for higher altitudes) Mechanical Parameters Product Dimensions (Length * Depth * Height) 1000mm*1600mm*2200mm Product Weight 500~1500KG
