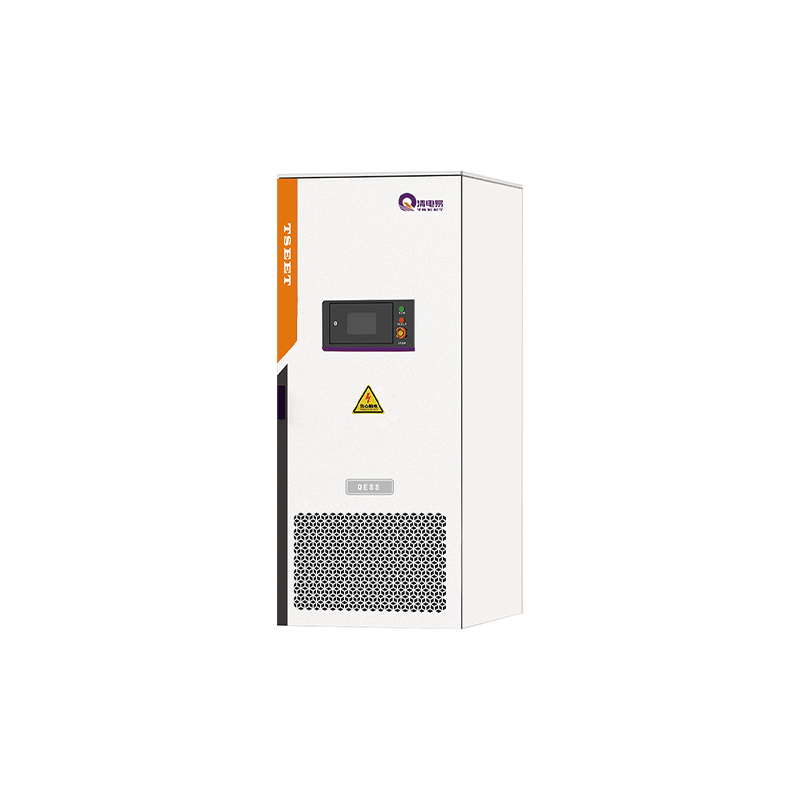

Liquid-cooled energy storage cabinet
Product Features
- Product Description
- Performance characteristics
- Technical parameters
-
- Commodity name: Liquid-cooled energy storage cabinet
- 产品特点: Used for storing electrical energy, it consists of a battery pack, PCS converter, BMS battery management system, EMS energy management system, cooling system, control system, etc. It realizes AC/DC conversion, detects the battery pack operating status, energy operating status, etc. The components work together to enable the energy storage cabinet to suppress fluctuations caused by the non-connected renewable energy access to the grid, maintain grid stability, and also suppress load changes, playing a role in frequency regulation and voltage regulation, and improving the power factor.
An energy storage cabinet is a standardized cabinet that integrates battery modules, battery management systems (BMS), energy management systems (EMS), thermal management systems, fire suppression systems, and other equipment for storing electrical energy and releasing it as needed.
Product Overview
An energy storage cabinet is a standardized cabinet that integrates battery modules, battery management systems (BMS), energy management systems (EMS), thermal management systems, fire suppression systems, and other equipment for storing electrical energy and releasing it as needed. It can effectively balance electricity supply and demand, improve energy utilization efficiency, and support the absorption of renewable energy.
-
Performance Characteristics
Used for storing electrical energy, it consists of a battery pack, PCS converter, BMS battery management system, EMS energy management system, cooling system, control system, etc., to achieve AC/DC conversion, detect the battery pack operating status, energy operating status, etc.
The components work together to enable the energy storage cabinet to suppress fluctuations caused by the connection of non-connected new energy sources to the power grid, maintain grid stability, and simultaneously suppress load jumps, playing a role in frequency regulation and voltage regulation, and improving the power factor.
Main Features
High energy density: Uses lithium iron phosphate (LiFePO₄) or ternary lithium batteries, with high energy density and long cycle life. Intelligent management: Equipped with BMS and EMS, real-time monitoring of battery status, optimization of charging and discharging strategies to ensure safe and efficient system operation. Modular design: Supports flexible expansion, and different capacity battery modules can be configured according to needs. High safety: Has multiple safety protection mechanisms, including overvoltage, overcurrent, overtemperature, short-circuit protection, and a fire suppression system. Strong environmental adaptability: Suitable for working environments of -20℃~50℃, with a protection level typically IP54 or higher. On-grid/off-grid compatible: Supports on-grid and off-grid operation to meet the needs of various application scenarios.
-
Item Parameter Rated Power 100kW Rated Voltage AC380V Rated Capacity 4760Ah Rated Energy 233kwh Battery Pack Specifications Lithium-ion Battery DC Voltage Range 670-1000V Number of Cycles ≥6000 Permissible Grid Voltage Range 320-460V Rated Frequency 50HZ Connection Method 3W+N+PE Full Load Operating Time 2h Ingress Protection Rating IP54 Permissible Ambient Temperature Charging/Discharging 0~+55℃,-20～+55℃ Permissible Relative Humidity ≤75%RH Permissible Maximum Altitude 1000m Standby Loss <50W Thermal Management Air Cooling Product Dimensions (Length*Depth*Height) 2700mm*1200mm*2200mm Product Weight 2704kg
