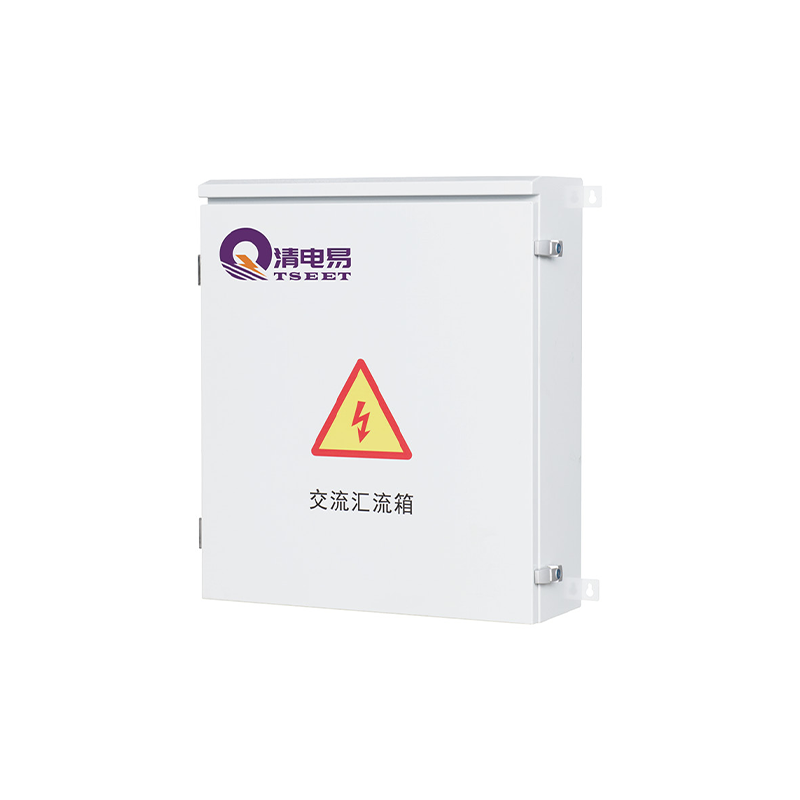

Photovoltaic AC combiner box
Product Features
- Product Description
- Performance characteristics
- Technical parameters
-
- Commodity name: Photovoltaic AC combiner box
The combiner box is an important device in a photovoltaic power generation system, used to collect the DC power from photovoltaic strings and output it to the inverter. It has protection, monitoring, and power distribution functions to ensure the efficient and stable operation of the photovoltaic system.
Product Overview
The combiner box is an important device in a photovoltaic power generation system, used to collect the DC power from photovoltaic strings and output it to the inverter. It has protection, monitoring, and power distribution functions to ensure the efficient and stable operation of the photovoltaic system.
-
Project
Parameters
Rated Power 250kW Rated Voltage
DC1000V/AC380V
Rated Input Current per Channel (Discharge) 250A (Customizable) Rated Output Current per Channel (Discharge)
500A (Customizable)
Rated Input Current per Channel (Charging)
500A (Customizable)
Rated Output Current per Channel (Charging) 250A (Customizable) Maximum Number of Input Channels (Discharge)
2-24 Channels (Customizable)
Maximum Number of Input Channels (Charging)
2-24 Channels (Customizable)
Enclosure Protection Level
IP55
Permissible Ambient Temperature
-25~+55℃
Permissible Relative Humidity 10~90%, Non-condensing Maximum Permissible Altitude
4000m
Standby Power Consumption
<50W
Product Dimensions (Length*Depth*Height) 700mm*400mm*1500mm (Customizable Design) Product Weight
80kg
