Charging box changes
Product Features
- Product Description
- Performance characteristics
- Technical parameters
-
- Commodity name: Charging box changes
- 产品特点: Main Features Modular Design 1. Three independent compartments (high-voltage, transformer, and low-voltage) with a compact layout, supporting various power supply modes such as ring network and terminal power supply. 2. Integrated DC power distribution cabinet and low-voltage switchgear, providing a stable DC power supply and supporting electric operation of charging piles and power supply for protection devices. Heat Dissipation and Protection 1. Natural ventilation + forced air cooling system, with a temperature controller to automatically adjust the transformer temperature. 2. Optional enclosure materials include ordinary steel plate, stainless steel, or anti-corrosion composite plate, suitable for harsh environments with high humidity and dust. Intelligent Functions 1. Supports X-Boost enhanced drive, output power can be increased to 1200W (if equipped with an outdoor power supply). 2. Built-in intelligent monitoring system, compatible with remote communication interfaces, enabling fault warning and remote data transmission.

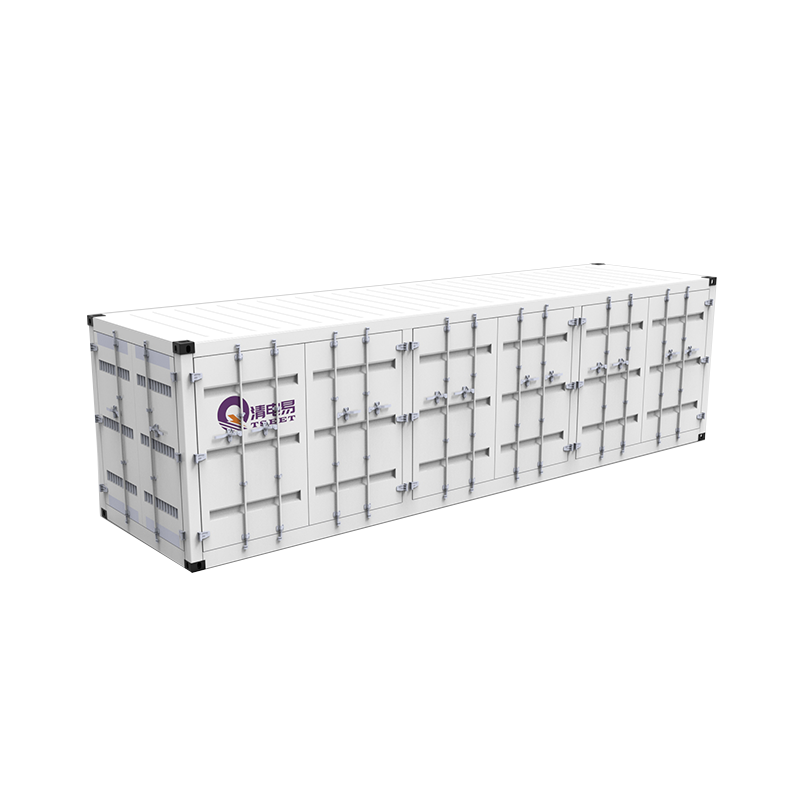

Charging pile dedicated box-type substation (hereinafter referred to as "charging box substation") is a set of outdoor substation equipment integrating high-voltage switchgear, transformers, low-voltage distribution and DC power supply systems, specially designed for new energy vehicle charging stations, with features of high efficiency, intelligence, and high protection.
The charging pile dedicated box-type substation (hereinafter referred to as "charging box substation") is a complete set of outdoor substation equipment integrating high-voltage switching equipment, transformers, low-voltage power distribution, and DC power supply systems. It is specially designed for new energy vehicle charging stations and features high efficiency, intelligence, and high protection.
Application Scenarios
Urban charging stations: Supports power supply for fast charging pile clusters, adapting to capacity requirements of 800~2000kVA.
Highway service areas: Mobile box-type substation design, enabling rapid deployment and adaptation to frequent relocation needs.
Industrial parks and residential areas: Integrates reactive power compensation and electricity metering functions to optimize power grid load. -
Transformer parameters Transformer type Dry-type transformer Rated capacity 630kVA-5000kVA Voltage ratio 10.5kV/0.8kV, 10.5kV/0.4kV; 37kV/0.8kV, 37kV/0.4kV Group DY11 High-voltage cabinet parameters High-voltage cabinet type XGN-12, KYN28-12, KYN61-40.5 Rated voltage 10kV, 35kV Low-voltage cabinet parameters Low-voltage cabinet type GCS, GGD, MNS, GGJ, Grid-connected cabinet Rated voltage 400V Charging pile parameters Charging pile type V2G charging pile/Charging pile Discharge mode AC/DC Power 20kW-120kW (flexible) Battery-side parameters Battery cell type HC-3.2V/280Ah System configuration 1P52S (one pack) Battery voltage range 670-1000V Battery pack specifications Lithium-ion battery Number of cycles ≥6000 Full-load operating time 1h, 2h, 4h System parameters Product dimensions (length * depth * height) Customizable Product weight To be determined according to the product Enclosure protection level IP54 Corrosion protection level C3/C5 Permissible ambient temperature Charging/Discharging 0 ~ +55℃, -20 ~ +55℃ Permissible relative humidity ≤95%RH Permissible maximum altitude 3000m Thermal management Intelligent air cooling/liquid cooling Auxiliary power supply Self-powered/Externally powered Fire suppression system Smoke detector, gas fire suppression (perfluorohexane), immersion water fire suppression Communication interface RS485/Ethernet Communication protocol Modbus/TCP/IEC104/IEC61850
