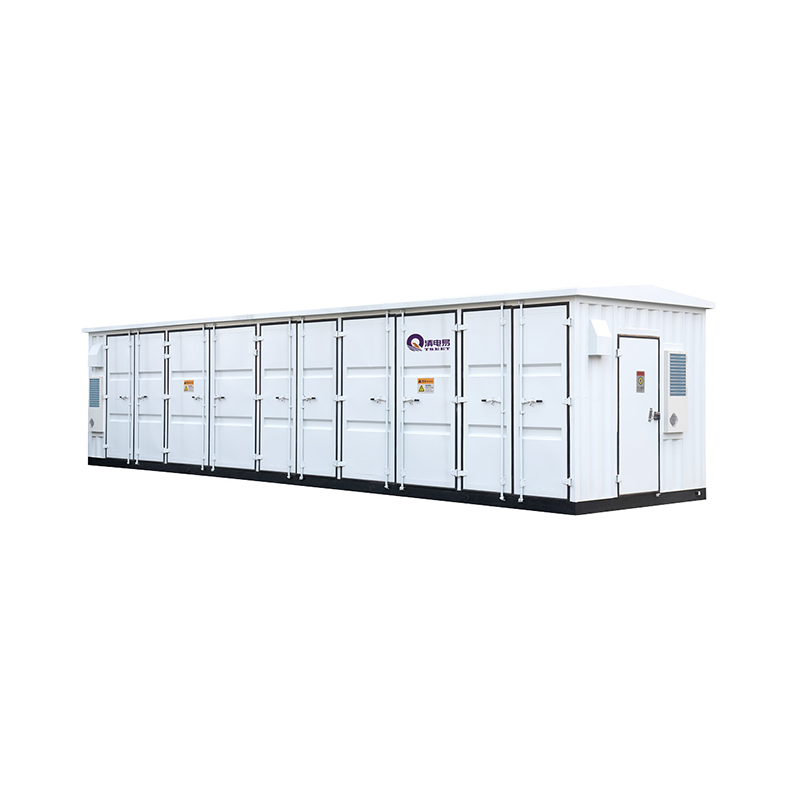

Microgrid substation transformer
Product Features
- Product Description
- Performance characteristics
- Technical parameters
-
- Commodity name: Microgrid substation transformer
- 产品特点: Multi-energy complementary: Supports integrated photovoltaics, energy storage, and charging design, enabling on-site energy consumption and peak shaving. Intelligent control: Integrates microgrid controllers and energy management systems (EMS), supporting remote monitoring and AI-optimized scheduling. High adaptability: Protection level reaches IP44. Suitable for extreme environments from -40℃ to +55℃, dustproof, moisture-proof, and corrosion-resistant.
Microgrid box-type substation is a multifunctional prefabricated substation integrating high-voltage switchgear, transformers, low-voltage distribution units, and intelligent control systems. It is specially designed for microgrid scenarios and supports the access of renewable energy (such as photovoltaics and wind power), the coordination of energy storage systems, and dynamic load dispatching. It is a core equipment for building efficient and low-carbon microgrids.
Product Overview
Microgrid box-type substations are multifunctional prefabricated substations that integrate high-voltage switchgear, transformers, low-voltage distribution units, and intelligent control systems. They are specifically designed for microgrid scenarios, supporting the integration of renewable energy sources (such as photovoltaics and wind power), energy storage system collaboration, and dynamic load scheduling. They are core equipment for building efficient and low-carbon microgrids.
-
Main Features
Multi-energy Complementary:
Supports integrated photovoltaics, energy storage, and charging design, enabling on-site energy consumption and peak-shaving.
Intelligent Control:
Integrates a microgrid controller and an energy management system (EMS), supporting remote monitoring and AI-optimized scheduling.
High Adaptability:
Protection level reaches IP44. Suitable for extreme environments from -40℃ to +55℃, dustproof, moisture-proof, and corrosion-resistant.
-
Product Specifications
Parameters
Transformer Type
Dry-type/Oil-immersed Transformer
Rated Capacity 50kVA-5000kVA Voltage Ratio
10.5kV/0.8kV, 10.5kV/0.4kV; 37kV/0.8kV, 37kV/0.4kV
Group
DY11
High Voltage Cabinet Type
XGN-12, KYN28-12, KYN61-40.5
Rated Voltage
10kV, 35kV
Low Voltage Cabinet Type
GCS, GGD, MNS, GGJ, Grid-connected cabinet
Rated Voltage
400V
Charging Pile Type
V2G Charging Pile/Charging Pile
Discharge Mode
AC/DC
Power 20kW-120kW (Flexible) Battery Cell Type
HC-3.2V/280Ah
System Configuration 1P52S (One Pack) Battery Voltage Range
670-1000V
Battery Pack Specifications
Lithium-ion Battery
Cycle Life
≥6000
Full Load Operating Time 1h, 2h, 4h Product Dimensions (L*W*H)
Customizable
Product Weight
To be determined according to the product
Enclosure Protection Level
IP55 (Fully sealed design)
Corrosion Protection Level
C3/C5
Permissible Ambient Temperature for Charging/Discharging -20~+55℃ Permissible Relative Humidity
≤95%RH
Maximum Permissible Altitude 4000m Thermal Management
Intelligent Air Cooling/Liquid Cooling
Auxiliary Power Supply
Self-powered/Externally powered
Fire Suppression System
Smoke detector, gas fire suppression (perfluorohexanone), immersion water fire suppression
Communication Interface RS485/Ethernet Communication Protocol
Modbus/TCP/IEC104/IEC61850
